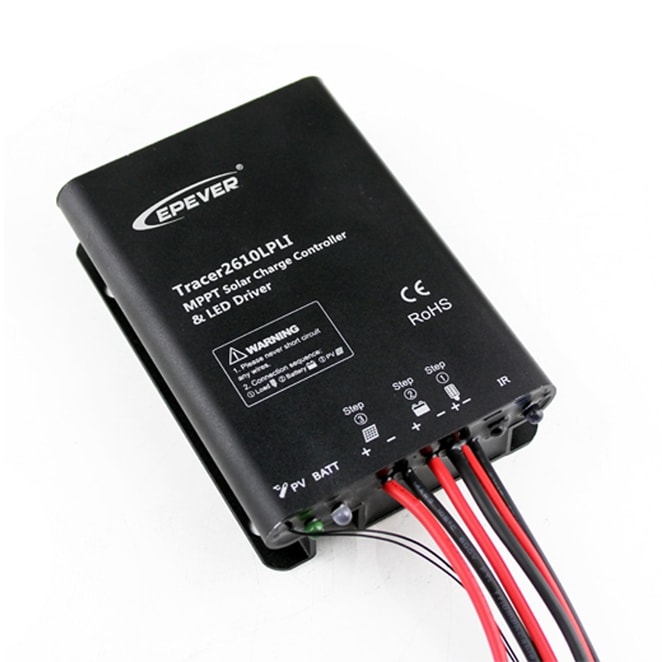

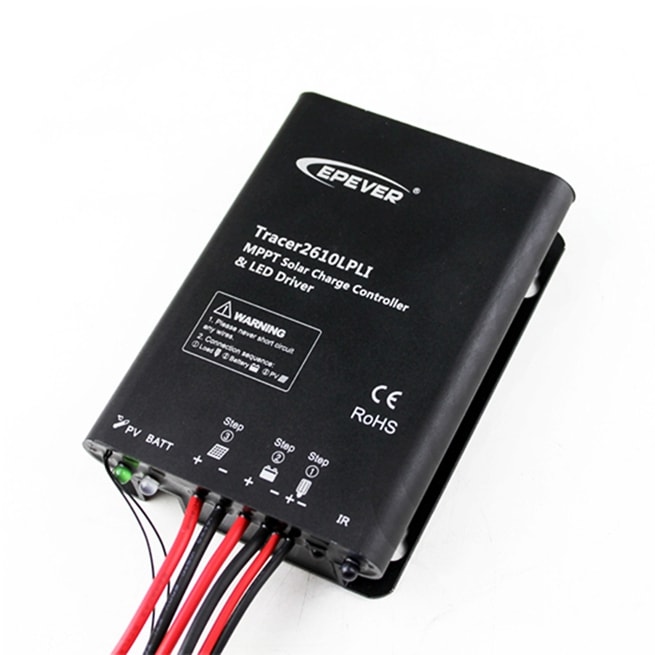

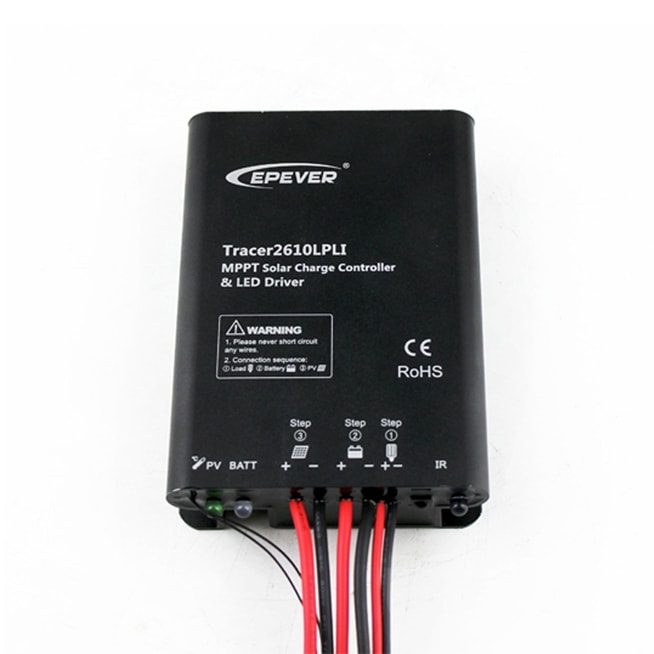

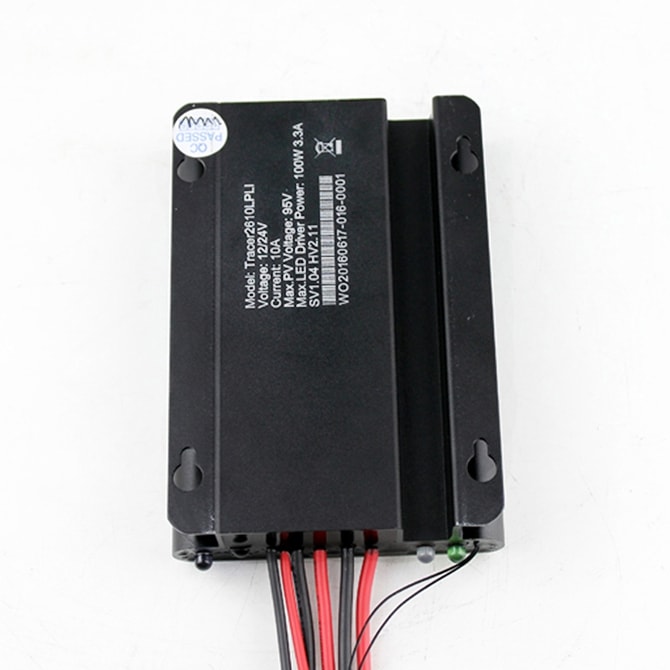

Lithium Battery Solar Charge Controller Tracer LPLI Series

Lithium Battery Solar Charge Controller Tracer LPLI Series

The Tracer LPLI series lithium battery MPPT solar charge controller combines solar charge controller and LED constant current driver into one unit which is ideal for solar LED Lighting, especially when dimmer function is needed. The advanced Maximum Power Point Tracking charging methods enables the system charging and discharging management to obtain the most radical optimization. Increase the system flexibility, yet lower down the system cost.


  • Tracer1305LPLI 12V 10A
  • Tracer2606LPLI / Tracer2610LPLI 12/24VDC 10A
  • Tracer3906LPLI / Tracer3910LPLI 12/24VDC 15A
  • Tracer5206LPLI / Tracer5210LPLI 12/24VDC 20A


  • Adopt high quality components of ST, IR and Infineon, make sure product using lifespan
  • Wide working environment temperature(-40℃~60℃)
  • Apply to lithium battery
  • Lithium battery self-activating function
  • Lithium battery low temperature protection function
  • Load reduce power automatically
  • Maximum conversion efficiency of 98%
  • Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efficiency no less than 99.5%
  • Ultra-fast tracking speed and guaranteed tracking efficiency
  • Accurately recognizing and tracking of multiple power points
  • 12/24VDC automatically identifying system voltage or user-defined working voltage
  • Digital precision constant current control and the control accuracy are less than ±2%
  • Maximum output efficiency of 96%
  • PV and Load power limitation function
  • The output current can be adjusted among the rated power and current range
  • Monitoring and setting parameter via Mobile APP, PC Monitor setting software with IR function.
  • Aluminum housing for better cooling
  • Real-time energy statistics function
  • IP68 waterproof degree
  • Long lifespan design
