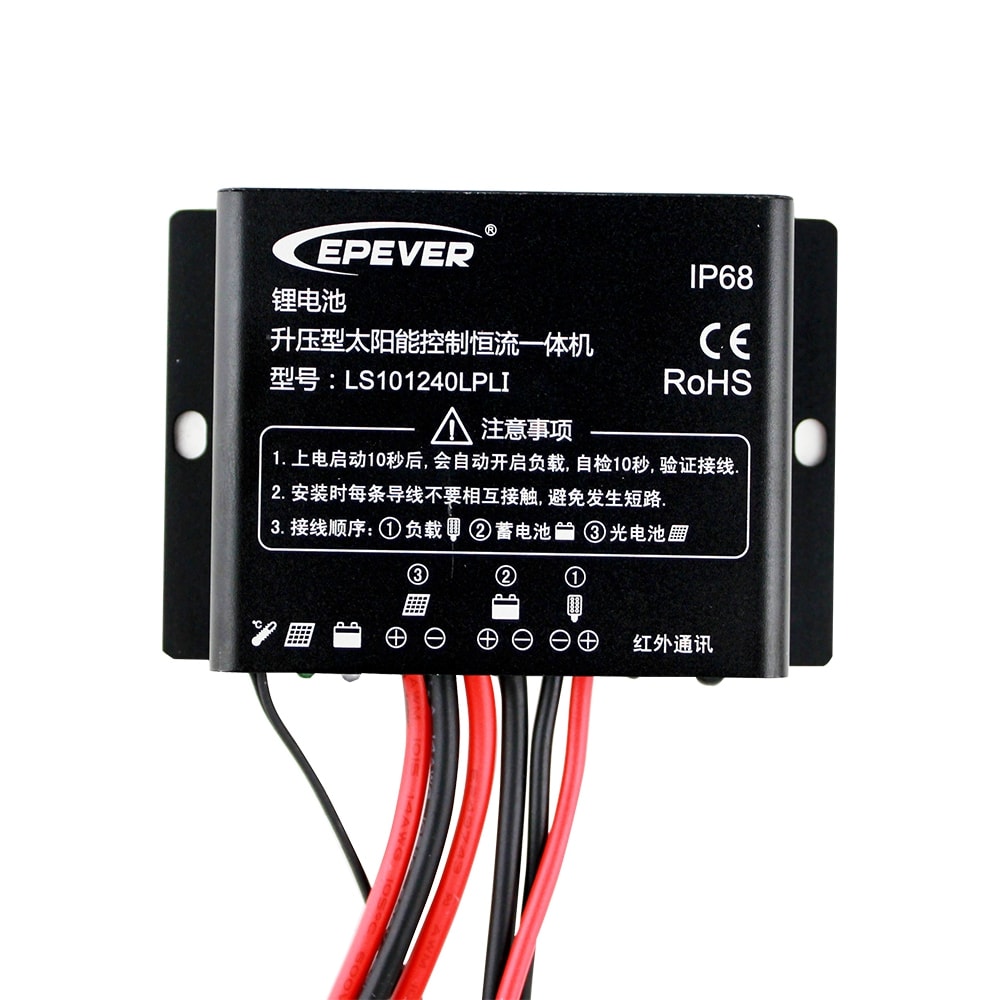

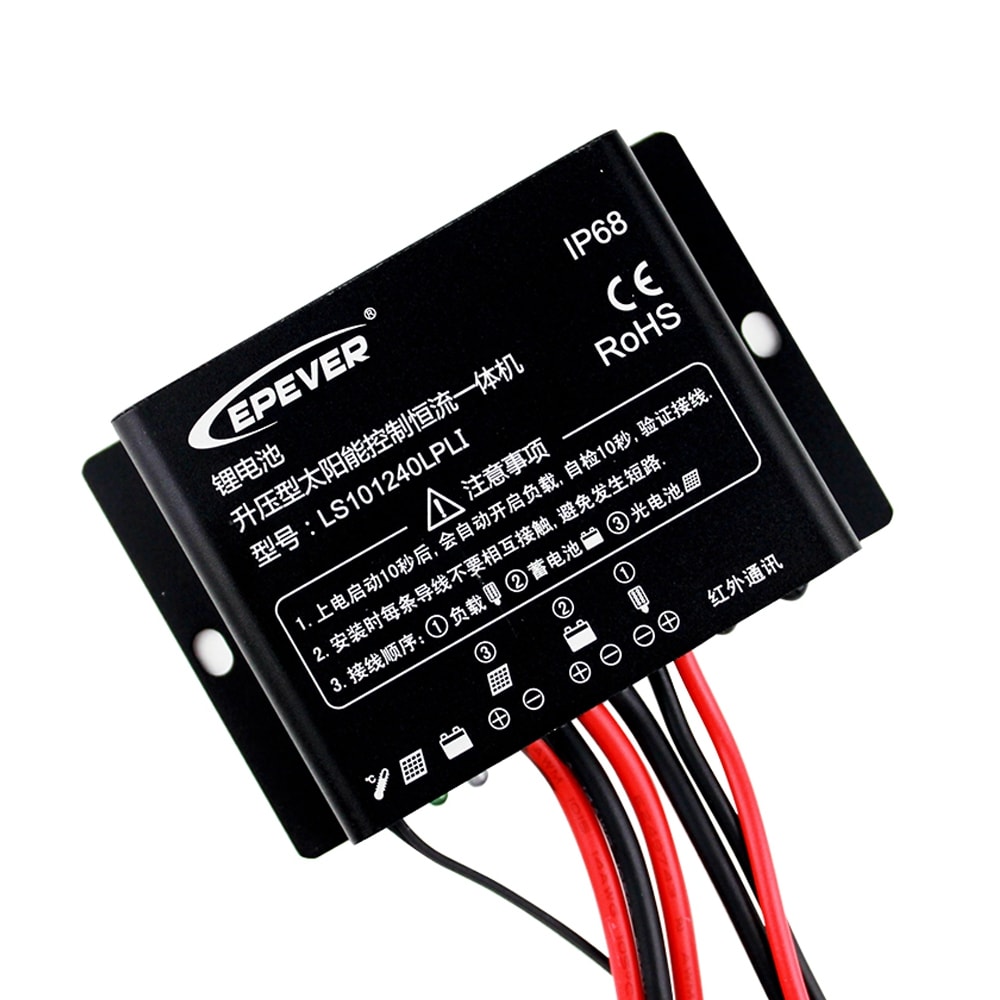

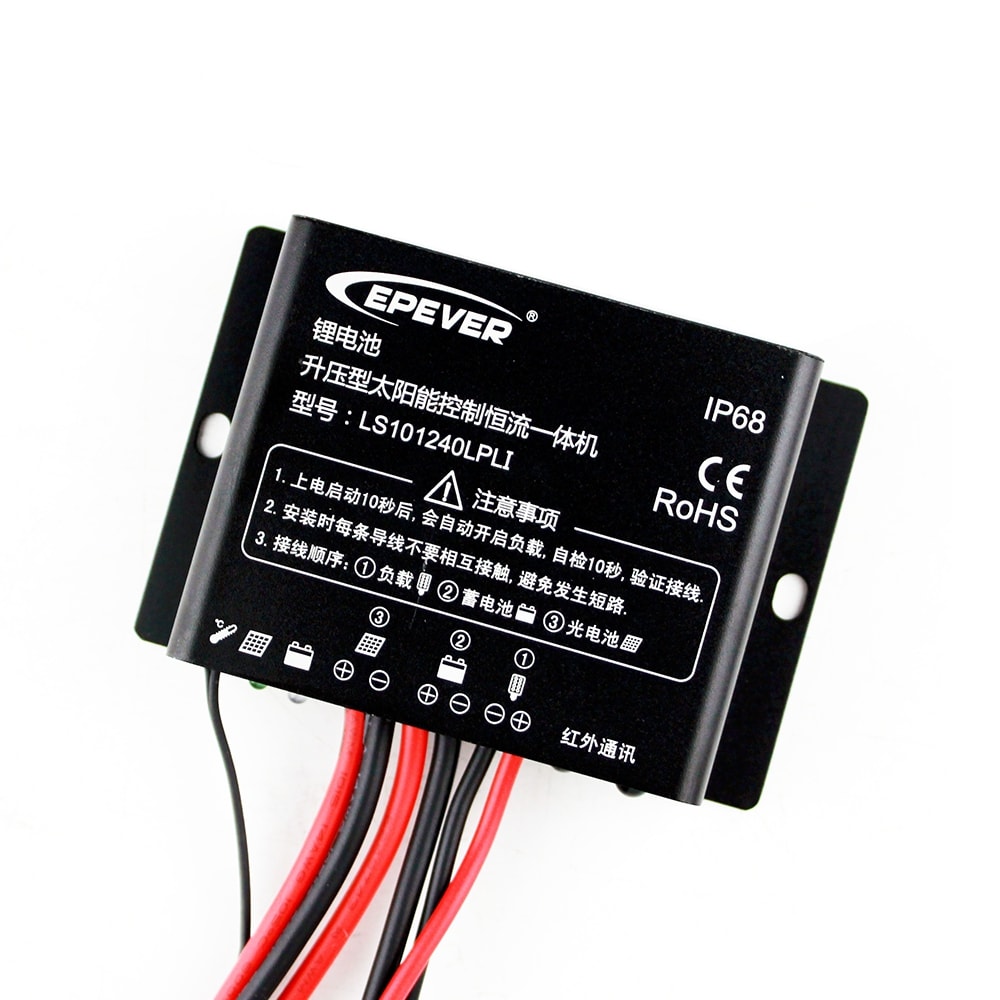

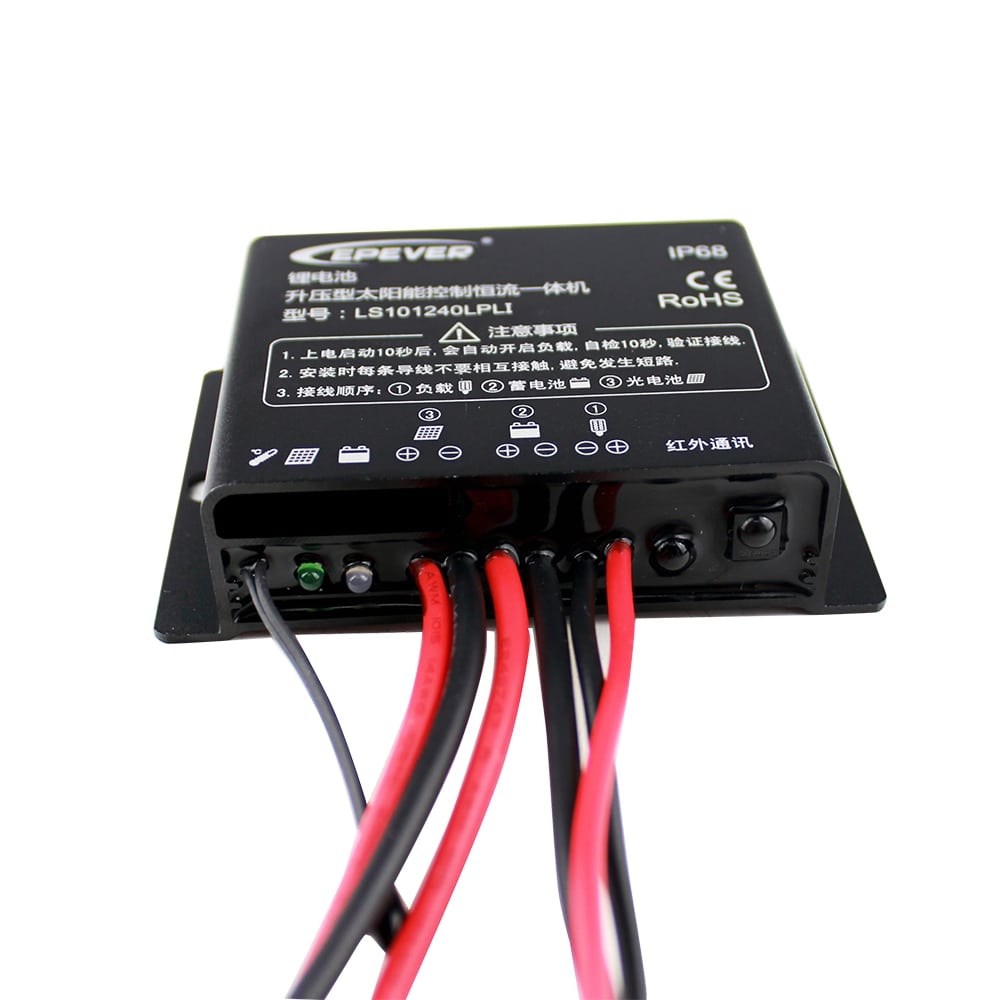

Solar Charge Controller LandStar LPLI Series

Solar Charge Controller LandStar LPLI Series

The LandStar LPLI series controller combines the solar charge controller and LED constant current driver into one unit which is ideal for solar LED Lighting, especially for the application for LED lamp which requires dimmer function. The advanced pulse width modulation charging methods enables the system charging and discharging management to obtain the most radical optimization. Make the system cost reduce, and increase the system flexibility.


  • LS101240LPLI 10A 12VDC
  • LS101260LPLI 10A 12VDC
  • LS102460LPLI 10A 12/24VDC
  • LS2024100LPLI 20A 12/24VDC
  • LS2024120LPLI 20A 12/24VDC


  • Apply to lead-acid battery and lithium battery
  • Lithium battery self-activating function
  • Lithium battery low temperature protection function
  • Intelligent power mode with 365-day lighting control technology
  • Load reduce power automatically
  • Load power limitation function
  • Maximum output efficiency of 96%
  • Digital precision constant current control and the control accuracy are less than±2%
  • Discharging power calculation and real-time energy statistics recording function
  • Multiple load control modes, LED rated current and current percentage can be set
  • Load test function for detecting the system
  • Extensive electronic protections
  • Without any button, parameter setting via RC-10 and FC-01 with IR function
  • Fully encapsulated PCB, IP68 protection
  • Aluminum housing for better cooling

Inquiry Datasheet

Category: Product ID: 1830
