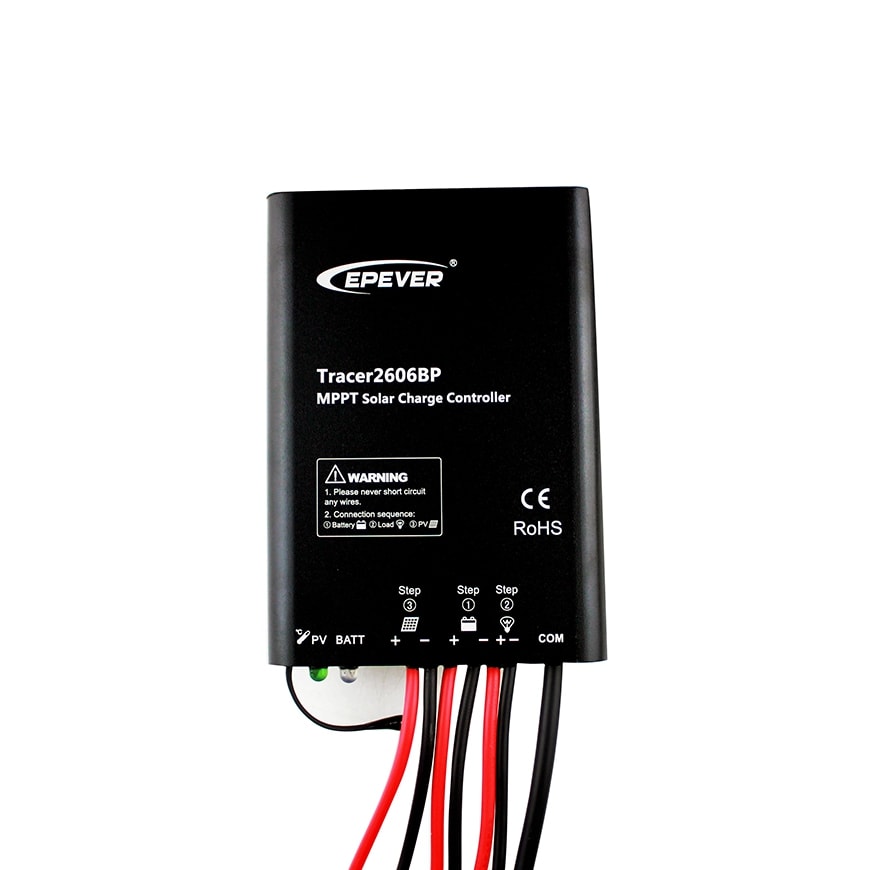

Lithium Battery MPPT Solar Charge Controller Tracer-BP Series

Lithium Battery MPPT Solar Charge Controller Tracer-BP Series

The Tracer BP series solar charge controller adopt to the advanced Maximum Power Point Tracking charging methods, it enables the system charging and discharging management to obtain the most radical optimization. Increase the system flexibility, yet lower down the system cost. The controller support a variety of battery, for example sealed, gel, flooded and lithium battery. User can view and modify the working status and parameters. It can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc.


  • Tracer2606BP / Tracer2610BP 130W/12V 260W/24VDC 10A
  • Tracer3906BP / Tracer3910BP 195W/12V 390W/24VDC 15A
  • Tracer5206BP / Tracer5210BP 260W/12V 520W/24VDC 20A
  • Tracer7810BP 390W/12VDC 780W/24VDC 30A


  • Adopt high quality components of ST,IR and Infineon, make sure product using lifespan
  • Wide working environment temperature (-40℃~60℃)
  • Apply to lithium battery (LiFePO4/Li-NiCoMn) and battery (Sealed/Gel/Flooded)
  • Lithium battery self-activating and low temperature protection function
  • Maximum conversion efficiency of 98%
  • Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efficiency no less than 99%
  • Ultra-fast tracking speed and guaranteed tracking efficiency
  • Accurately recognizing and tracking of multiple power points
  • PV power limitation function
  • Monitoring and setting parameter via Mobile APP, PC Monitor setting software with RS485 communication interface.
  • Use of standard Modbus communication protocol for RS485 bus connections, communication protocol compatibility much better
  • Connecting the IOT(Internet of Things) module and Cloud Server monitoring software to realize remote monitoring of the multi-machine system
  • The RS485 connector can provide power supply
  • Aluminum housing for better cooling
  • Real-time energy statistics function
  • IP67 waterproof degree
  • Long lifespan design

Inquiry Datasheet

Category: Product ID: 1866
